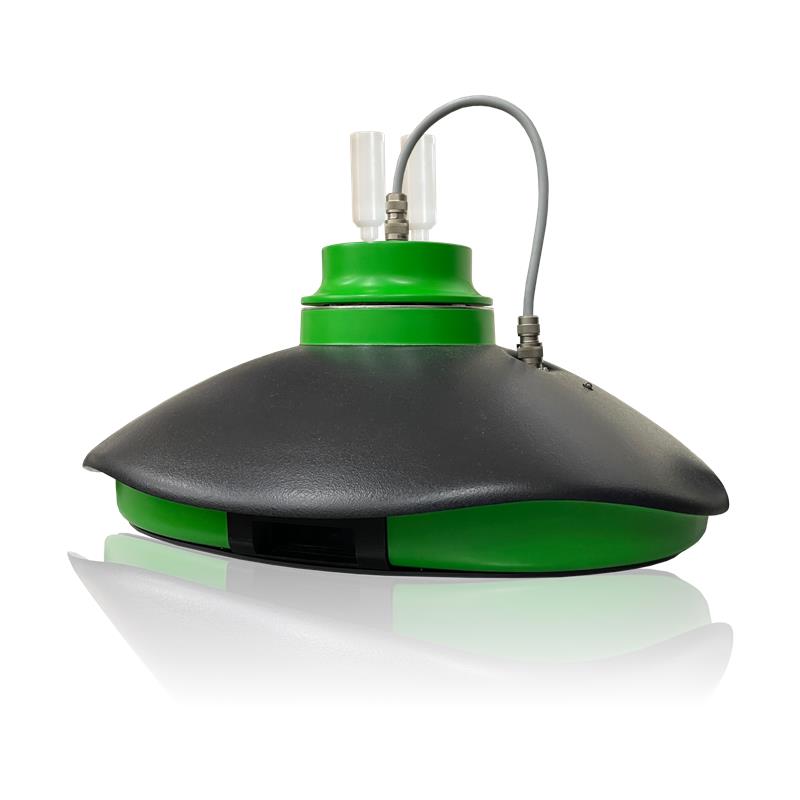

Transformer Oil Tan Delta Test kit

Name: Transformer Oil Tan Delta Test kit
Brand: MYRIAD INDUSTRIAL SOLUTIONS LLP
Price: 700000.0 INR
Availability: InStock

700000.0 INR/Number

Get a Price/Quote

Product Details:

Measuring Range Tan : 0.001 to 10
Application Measuring dielectric dissipation factor (Tan Delta) of transformer oil
Port Size Standard oil sample input
Specimen Size 400 ml (typical oil cell volume)
Humidity 10% - 90% RH non-condensing
Operating Voltage Up to 2 kV AC (as per test requirements)
Automation Grade Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Transformer Oil Tan Delta Test kit Price And Quantity

Minimum Order Quantity 1 Number
Price 700000.0 INR/Number

Transformer Oil Tan Delta Test kit Product Specifications

Resolution 0.001 Tan Delta
Response Time 5 seconds
Equipment Type Transformer Oil Tan Delta Test Kit
Features Compact, portable, automatic measurement, data storage
Interface Type USB, RS232
Control Mode Microprocessor based
Test Speed Standard, as per test protocol
Mounting Type Table-top
Capacity One test cell
Power Supply 230V AC, 50Hz
Accuracy 1% of reading
Frequency 50/60 Hz
Display Type Digital LCD/LED display
Max Height Approx. 200 mm
Temperature Operating 10C to 40C
Number of Specimens Single test per cycle
Test Range 0.001 - 10 (Tan Delta)
Automation Grade Automatic
Humidity 10% - 90% RH non-condensing
Specimen Size 400 ml (typical oil cell volume)
Operating Voltage Up to 2 kV AC (as per test requirements)
Machine Weight Approx. 5-10 kg
Application Measuring dielectric dissipation factor (Tan Delta) of transformer oil
Measuring Range Tan : 0.001 to 10
Port Size Standard oil sample input
Usage Electrical insulation quality testing

Accessories Carrying case, test cables, calibration liquids
Test Method Bridge method, IEC 60247 compliant
Calibration User calibratable with standard reference materials
Printer Interface Optional thermal printer support
Language Support English, additional languages on request
Compliance Standard IEC, ASTM, IS standards for transformer oil testing
Safety Class IP20 (typical laboratory use)
Data Storage Internal memory for up to 100 results
Software Support PC analysis software included
Result Output Numeric digital plus pass/fail indication
Warm-up Time < 10 minutes
Test Duration Approx. 2-5 minutes per test
Voltage Setting Programmable from 500V up to 2kV
Sample Cup Material High-quality insulating glass/ceramic

Transformer Oil Tan Delta Test kit Trade Information

Payment Terms Telegraphic Transfer (T/T)
Supply Ability 10 Number Per Week
Delivery Time 1 Week
Sample Available No
Main Domestic Market Karnataka, Goa, Madhya Pradesh, Central India, West India, Gujarat, Maharashtra, Rajasthan

Product Description

If youre in the business of maintaining power transformers, substation equipment, or oil-filled electrical assets, dielectric insulation testing is non-negotiable. Myriad Industrial Solutions LLP presents the FLD T Transformer Oil Tan Delta Tester a state-of-the-art, fully automatic instrument designed for precise measurement of dielectric dissipation factor (tan ), relative permittivity (), and insulation resistivity in transformer oils and other dielectric fluids.

What is Tan Delta in Transformer Oil?

Tan Delta (tan ), also known as the dielectric dissipation factor, is a critical parameter that reflects the insulating quality of transformer oil. It quantifies the losses occurring due to the presence of moisture, sludge, aging byproducts, and other contaminants.
A low tan delta value indicates high insulation quality. Conversely, a high value signals that the oil has deteriorated and could fail under high voltage stress.

FLD T Transformer Oil Tan Delta Tester: Key Features

Feature	Specification
Tan Delta Measurement Range	0.00001 4
Resolution	110
Dielectric Constant Range ()	1.0 25.0
Resistivity Measurement Range	2.5 Mm 100 Tm
Voltage Range	500 2000 V RMS
Frequency Range	45 65 Hz
Temperature Range	20C 110C
Accuracy (Tan Delta)	1% + 0.00008
Oil Volume Required	45 cm
Weight	< 6 kg

Accurate and Efficient Tan Delta Measurement

Designed for precise assessment of transformer oil quality, this kit delivers rapid and reliable Tan Delta readings to ensure electrical insulation health. Utilizing the bridge method in accordance with IEC 60247, each test is completed within 2-5 minutes, with digital numeric and pass/fail output for swift analysis. Its automatic measurement process and microprocessor control ensure repeatable, high-integrity results for labs and field professionals alike.

User-Friendly and Portable Design

Weighing just 5-10 kg, the kit can be easily transported in its included carrying case. The interface supports both USB and RS232 connectivity for seamless data transfer. The instrument boasts a clear digital display, programmable voltage, single-cell testing, and user calibration-making it both versatile and efficient. Its compact tabletop form factor is ideal for a range of laboratory environments.

Comprehensive Data Management and Analysis

Store up to 100 test results internally and export them via a compatible printer or connected PC. Comprehensive analysis software is supplied, enabling post-test evaluation and report generation. Alongside automatic pass/fail judgements, this feature ensures that all critical transformer oil insulation parameters are thoroughly documented and easily accessible.

FAQ's of Transformer Oil Tan Delta Test kit:

Q: How is the Transformer Oil Tan Delta Test Kit operated?

A: Operation is simple and automatic: pour a 400 ml oil sample into the high-quality insulating glass or ceramic cup, set the desired test voltage (500V to 2kV), and start the automated test. The instrument processes each specimen, displaying results digitally within 2-5 minutes.

Q: What makes this kit suitable for laboratory use?

A: With its IP20 safety class, robust construction, and tabletop mounting, the kit is designed for typical laboratory conditions. Its precise control, programmable voltage, and microprocessor-based automation ensure reliable operation in professional testing environments.

Q: When should calibration be performed, and how is it achieved?

A: Calibration should be done periodically or when accuracy verification is required. The kit supports user calibration using supplied standard reference materials, making recalibration straightforward without complex procedures.

Q: Where can data and test results be stored or analyzed?

A: You can store up to 100 results in the kit's internal memory. Data can be printed with an optional thermal printer or transferred via USB/RS232 to a connected PC for further analysis using included software.

Q: What is the benefit of IEC, ASTM, and IS standard compliance?

A: Compliance ensures test results are accurate, repeatable, and internationally recognized. This means your data is credible for audits, quality assurance, and industry-standard reporting.

Q: How does automated measurement enhance the test process?

A: Automatic measurement reduces operator error and optimizes consistency. The microprocessor determines Tan Delta values promptly, displaying both numeric results and a clear pass/fail evaluation, saving time and enhancing reliability.

Q: What accessories are included with the kit?

A: Accessories supplied include a rugged carrying case, test cables, calibration liquids, and a PC analysis software package, enabling immediate setup and a comprehensive testing workflow.
