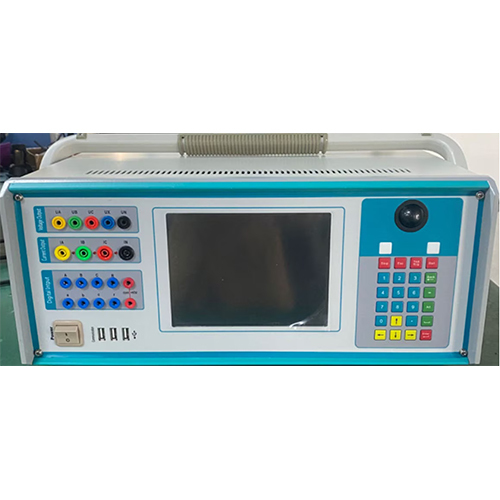

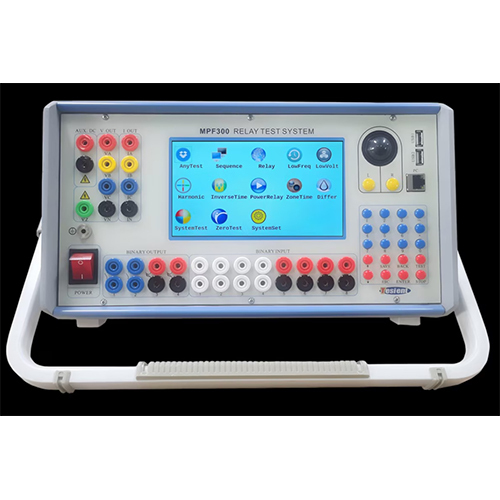

Protection Relay Test System

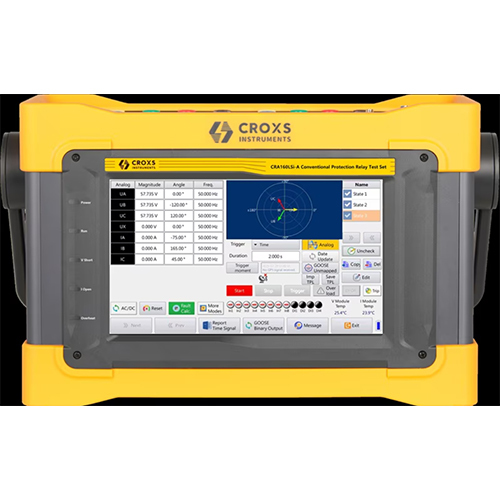

• Equipment Type
• Digital Relay Test Kit

• Accuracy
• 0.1%

• Application
• Testing and calibration of protective relays

• Automation Grade
• Automatic/Manual Selection

• Capacity
• 3 Phase Relay Testing

• Control Mode
• Touchscreen / Manual / PC-Controlled

• Display Type
• 10-inch TFT LCD Touchscreen

• Features
• Lightweight, Portable, High Precision, Multi-protection

• Frequency
• 50/60Hz

• Humidity
• 0 to 95% RH (Non-condensing)

• Interface Type
• USB, Ethernet, RS232

• Machine Weight
• Approx. 9 kg

• Measuring Range
• Voltage: 0-300V; Current: 0-20A

• Mounting Type
• Portable/Bench-top

• Operating Voltage
• 100-240V AC

• Power Supply
• 100-240V AC, 50/60Hz

• Resolution
• 0.01V / 0.001A

• Response Time
• < 20ms

• Temperature
• -10C to 55C Operating

• Test Range
• Voltage: Up to 300V / Current: Up to 20A

• Test Speed
• Programmable

• Usage
• Electrical substation and relay lab field testing

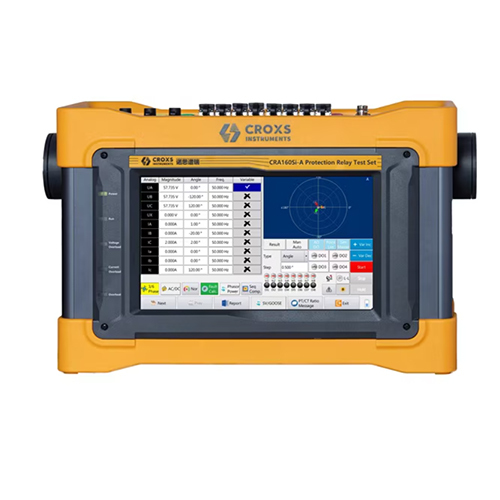

• Equipment Type
• Digital Substation Relay Test Set

• Accuracy
• Voltage: 0.1%, Current: 0.2%

• Application
• Protection relay testing in digital substations

• Automation Grade
• Automatic/Manual

• Capacity
• 6 Output Channels

• Control Mode
• Digital/Manual

• Display Type
• 7-inch TFT LCD touch screen

• Features
• Portable, Multi-protocol support, Real-time display, Programmable

• Frequency
• 45Hz - 65Hz

• Humidity
• 95% RH, non-condensing

• Interface Type
• USB, Ethernet, RS232, IEC61850

• Machine Weight
• 7 kg

• Max Height
• 120 mm

• Measuring Range
• Voltage: 0~300V, Current: 0~20A

• Mounting Type
• Portable/Handheld

• Number of Specimens
• 1

• Operating Voltage
• 100-240 V AC

• Port Size
• Standard Ethernet, USB, RS232

• Power Supply
• AC 100-240 V, 50/60 Hz

• Resolution
• 0.001V / 0.001A

• Response Time
• <20 ms

• Temperature
• 0C to 50C

• Test Range
• AC: 0~300V, DC: 0~350V

• Test Speed
• Adjustable, 0.001 - 999 cycles/sec

• Test Stroke
• Programmable up to 1000 cycles

• Usage
• Testing and commissioning of relay protection

• Equipment Type
• Relay Test Set

• Accuracy
• 0.5%

• Application
• Differential Relay Testing, Secondary Protection Relay Testing

• Automation Grade
• Automatic

• Capacity
• 6-Phase / 8-Channel Output

• Control Mode
• Automatic / Manual

• Display Type
• Large Color Touch Screen Display

• Features
• Lightweight, Touchscreen, Programmable, Real-Time Monitoring, Multi-Relay Support

• Frequency
• 50/60Hz

• Humidity
• 85% RH (Non-condensing)

• Interface Type
• USB, Ethernet

• Machine Weight
• Approx. 10 kg

• Measuring Range
• Voltage: 0-300V, Current: 0-15A

• Mounting Type
• Portable

• Number of Specimens
• 1 Relay per Test

• Operating Voltage
• 220V 10%

• Port Size
• Standard Connectors

• Power Supply
• AC 220V 10%, 50/60Hz

• Resolution
• 0.01V / 0.001A

• Response Time
• <20 ms

• Specimen Size
• Standard Differential Relay Sizes

• Temperature
• 0C to 40C (operating)

• Test Range
• Voltage: 0-300V, Current: 0-15A (per phase)

• Test Speed
• Manual/Variable

• Usage
• Testing differential & protection relays

• Accuracy
• Voltage: 0.2%, Current: 0.2%

• Application
• Testing and calibration of protection relays

• Automation Grade
• Automatic/Manual

• Capacity
• Capable of testing multiple relay types

• Control Mode
• Manual/Automatic Switching

• Display Type
• Large color touchscreen LCD

• Features
• Portable, Touchscreen, Advanced measurement software, User-friendly interface

• Frequency
• 50/60 Hz

• Hardness
• High impact-resistant housing

• Humidity
• 0-90% RH (non-condensing)

• Interface Type
• USB / Ethernet

• Machine Weight
• Approx. 7 kg

• Max Height
• Approx. 220 mm

• Measuring Range
• Voltage: 0-300 V, Current: 0-20 A

• Mounting Type
• Portable, table top

• Number of Specimens
• Single relay per test

• Operating Voltage
• AC 110-240V

• Port Size
• Standard interfaces available

• Power Supply
• AC Mains, 110-240V, 50/60Hz

• Resolution
• Voltage: 0.01 V, Current: 0.001 A

• Response Time
• Fast response (<15 ms)

• Specimen Size
• Adaptable to various relay sizes

• Temperature
• Operating: -10C to 50C

• Test Range
• Up to 3x300 V AC, Up to 3x20 A AC

• Test Speed
• Configurable via software

• Usage
• Field and laboratory testing

• Equipment Type
• Portable relay tester

• Accuracy
• 0.2%

• Application
• Testing protective relays and devices

• Automation Grade
• Automatic/Manual

• Capacity
• Current: 6x30A; Voltage: 4x300V

• Control Mode
• Touchscreen and Keypad

• Display Type
• Large color LCD touchscreen

• Features
• Portable, Multi-function, Programmable output, Graphical interface

• Frequency
• 50/60Hz

• Humidity
• 90% RH (non-condensing)

• Interface Type
• USB, RS232, Ethernet

• Machine Weight
• Approx. 12 kg

• Measuring Range
• AC/DC Voltage: 0-300V; AC/DC Current: 0-30A

• Mounting Type
• Bench-top/portable

• Operating Voltage
• 220V AC

• Port Size
• Standard 4mm terminals

• Power Supply
• AC 220V, 50/60Hz

• Resolution
• 0.001A / 0.01V

• Response Time
• <20 ms

• Temperature
• 0C-40C

• Test Range
• Up to 6x30A AC/DC current, 4x300V AC/DC voltage

• Test Speed
• Manual/Programmable

• Usage
• Relay and protection device testing

• Equipment Type
• Relay Test System

• Accuracy
• 0.5% F.S.

• Application
• Testing, calibrating, and verifying electrical relays

• Automation Grade
• Semi-automatic

• Capacity
• As per relay rating

• Control Mode
• Manual/Automatic

• Display Type
• Digital

• Features
• Multi-function relay test, digital readout, overcurrent protection

• Frequency
• 50/60Hz

• Humidity
• Up to 90% RH (Non-condensing)

• Interface Type
• Banana socket connectors

• Machine Weight
• Approximately 9 kg

• Max Height
• 150 mm

• Measuring Range
• Current: 0-10A; Voltage: 0-250V

• Mounting Type
• Bench-top

• Number of Specimens
• 1 relay at a time

• Operating Voltage
• 230V AC

• Power Supply
• 230V AC, 50Hz

• Resolution
• 0.01A/0.1V

• Response Time
• <100 ms

• Specimen Size
• Standard relay size

• Temperature
• 0C to 50C

• Test Range
• Dependent on relay type (typically 0-10A/0-250V)

• Usage
• Electrical relay functional test and calibration

• Equipment Type
• Protection Relay Tester

• Accuracy
• 0.2% FS

• Application
• Relay Protection, Calibration, Testing in Power Systems

• Automation Grade
• Automatic and Manual

• Capacity
• Six-phase voltage and current output capability

• Control Mode
• Microprocessor Based

• Display Type
• Large TFT Color LCD

• Features
• Automated Test Sequences, Built-in Report Generation, Multi-language Support

• Frequency
• 50 Hz / 60 Hz

• Humidity
• 0-90% RH (non-condensing)

• Interface Type
• USB, RS232, LAN

• Machine Weight
• Approx. 10 kg

• Measuring Range
• Voltage: 0 - 300 V; Current: 0 - 20 A

• Mounting Type
• Bench-top

• Number of Specimens
• Up to 1 protection relay per test cycle

• Operating Voltage
• 220V AC

• Port Size
• Standard multi-terminal interface

• Power Supply
• 220V AC, 50Hz

• Resolution
• 0.01 V / 0.001 A

• Response Time
• < 10 ms

• Specimen Size
• Relay/Digital/Analog Size Compatible

• Temperature
• Operating: 0C to 50C

• Test Range
• Supports various relay protection test types (Voltage, Current, Frequency, Time)

• Test Speed
• Configurable depending on test program

• Usage
• Testing and calibration of protective relays

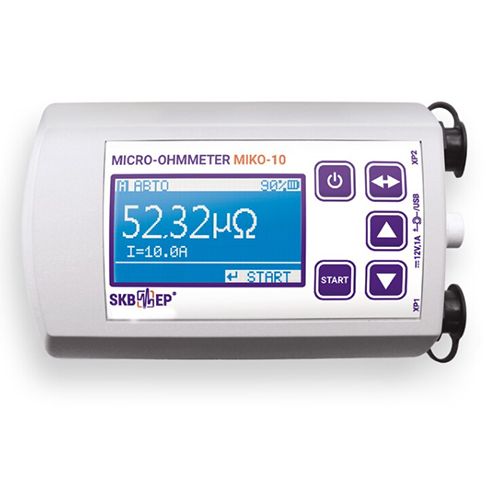

• Equipment Type
• Compact Micro Ohm Meter

• Accuracy
• 0.5% of reading

• Application
• Low resistance measurement, electrical component testing

• Automation Grade
• Semi-automatic

• Control Mode
• Manual/Automatic

• Display Type
• Large backlit LCD

• Features
• Portable, battery operated, auto zero, data hold

• Frequency
• DC measurement

• Humidity
• 80% RH (non-condensing)

• Interface Type
• 4-terminal Kelvin connection

• Machine Weight
• Approx. 0.5 kg

• Measuring Range
• 1 - 2000

• Mounting Type
• Benchtop/portable

• Number of Specimens
• 1 at a time

• Operating Voltage
• 9V rechargeable/adapter

• Port Size
• Standard 4-wire terminals

• Power Supply
• Rechargeable Battery or External Adapter

• Resolution
• 1

• Response Time
• <1 second

• Specimen Size
• Applicable to small electrical components

• Temperature
• 0C to 50C

• Test Range
• 1 - 2000

• Usage
• Precise resistance measurement

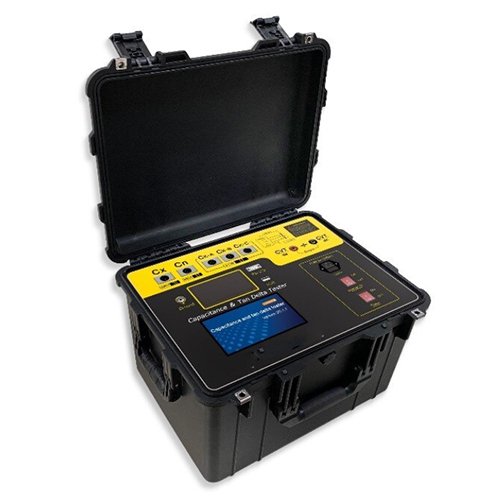

• Equipment Type
• Capacitance & Tan Delta Tester

• Accuracy
• C: (reading1%+1pF); Tan: (reading1%+0.00040)

• Application
• Dielectric Dissipation Factor and Capacitance testing of transformers, bushings, cables, capacitors, and electrical equipment

• Automation Grade
• Automatic and Manual

• Capacity
• Output voltage up to 12kV

• Control Mode
• Microprocessor Control

• Display Type
• Large Color LCD Screen

• Features
• Portable, User-friendly interface, Built-in printer, Data storage, Over-voltage and over-current protection

• Frequency
• 50/60 Hz

• Humidity
• 85% RH (Non-condensing)

• Interface Type
• USB, RS232, Printer port

• Machine Weight
• Approx. 10 kg

• Measuring Range
• C: 1 pF-200 F; Tan: 0.01%-10%

• Mounting Type
• Portable/Field Use (carry case)

• Number of Specimens
• Single specimen/test

• Operating Voltage
• 0-12 kV variable AC

• Power Supply
• AC 220V 10%, 50Hz

• Resolution
• Capacitance: 0.01 pF; Tan Delta: 0.001%

• Response Time
• 10 seconds

• Specimen Size
• Suitable for Transformer/Insulation sample connections

• Temperature
• 0 to 40C

• Test Range
• Capacitance: 1pF - 200F; Tan Delta: 0.01% - 10%

• Test Speed
• Manual/Auto selectable

• Usage
• Electrical testing, field and laboratory applications

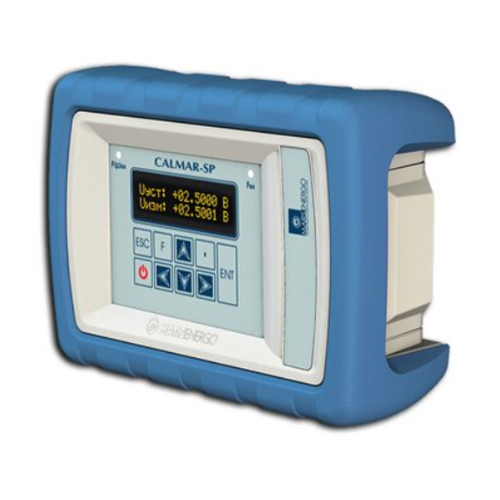

• Equipment Type
• DC Current and Voltage Calibrator

• Accuracy
• 0.02% of reading

• Application
• Calibration of DC current and voltage measuring equipment

• Automation Grade
• Semi-Automatic

• Control Mode
• Manual / Automatic

• Display Type
• Digital LCD

• Features
• Portable, High Precision, User-friendly Interface, Protective Casing

• Frequency
• 50/60 Hz

• Humidity
• Up to 90% non-condensing

• Interface Type
• USB / RS232

• Machine Weight
• 2.5 kg

• Measuring Range
• Current: 0 to 22 mA DC, Voltage: 0 to 22 V DC

• Mounting Type
• Portable Handheld

• Operating Voltage
• 230V AC

• Power Supply
• 230V AC, 50/60Hz

• Resolution
• 1 A / 1 mV

• Response Time
• <2 seconds

• Temperature
• 0C to 50C

• Usage
• Testing, Calibration, Maintenance

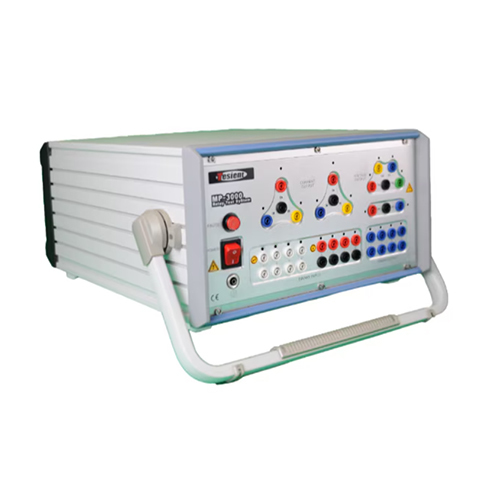

• Equipment Type
• Three phase automatic Relay test set

• Accuracy
• Better than 0.2%

• Application
• Testing of protection relays and schemes

• Automation Grade
• Automatic

• Capacity
• 3 phase digital output

• Control Mode
• Automatic / Manual

• Display Type
• Digital LED/LCD display

• Features
• Direct relay test, automatic/manual control, multiple output channels, overload protection

• Frequency
• 50 Hz

• Humidity
• <95% RH non-condensing

• Interface Type
• USB/Ethernet/RS232

• Machine Weight
• Approx. 15 kg

• Measuring Range
• Current: 0-40A, Voltage: 0-300V

• Mounting Type
• Table-top

• Number of Specimens
• Up to 3 phases, single/multiple relay connection

• Operating Voltage
• 230V AC 10%

• Port Size
• Standard IEC connectors

• Power Supply
• 230V AC, 50 Hz

• Resolution
• 0.01A / 0.01V

• Response Time
• <20 ms

• Temperature
• 0C to 50C operating

• Test Range
• Current: 0-40A, Voltage: 0-300V (per phase)

• Test Speed
• Variable, user programmable

• Usage
• Substation and laboratory relay test

• Equipment Type
• Advanced Winding Resistance Tester cum Precision Milli-Ohm Meter

• Accuracy
• 0.1% of reading

• Application
• Winding resistance measurement of transformers, coils, motors and electrical windings

• Automation Grade
• Semi-automatic

• Control Mode
• Manual/Automatic Selection

• Display Type
• Digital LCD display

• Features
• Rugged portable case, automatic zeroing, temperature compensation, data hold

• Frequency
• 50/60 Hz

• Humidity
• 90% RH non-condensing

• Interface Type
• USB/RS232 (varies by model)

• Machine Weight
• Approx. 5 kg

• Measuring Range
• 1 to 200

• Mounting Type
• Portable/carry-case

• Number of Specimens
• Single measurement at a time

• Operating Voltage
• 230V AC

• Port Size
• Standard 4-terminal Kelvin connection

• Power Supply
• 230V AC 10%, 50/60 Hz

• Resolution
• 0.1

• Response Time
• <2 seconds

• Specimen Size
• Various, depends on winding/component

• Temperature
• 0C to 50C

• Test Range
• 1 to 200

• Usage
• Laboratory and field testing
