MPF300 Portable relay tester

Get a Price/Quote

Product Details:

Operating Voltage 220V AC
Port Size Standard 4mm terminals
Automation Grade Automatic/Manual
Mounting Type Bench-top/portable
Test Range Up to 6x30A AC/DC current, 4x300V AC/DC voltage
Temperature 0C-40C
Frequency 50/60Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

MPF300 Portable relay tester Price And Quantity

Minimum Order Quantity 1 Unit

MPF300 Portable relay tester Product Specifications

Application Testing protective relays and devices
Humidity 90% RH (non-condensing)
Usage Relay and protection device testing
Power Supply AC 220V, 50/60Hz
Interface Type USB, RS232, Ethernet
Features Portable, Multi-function, Programmable output, Graphical interface
Equipment Type Portable relay tester
Accuracy 0.2%
Response Time <20 ms
Control Mode Touchscreen and Keypad
Resolution 0.001A / 0.01V
Operating Voltage 220V AC
Machine Weight Approx. 12 kg
Port Size Standard 4mm terminals
Automation Grade Automatic/Manual
Test Range Up to 6x30A AC/DC current, 4x300V AC/DC voltage
Mounting Type Bench-top/portable
Test Speed Manual/Programmable
Frequency 50/60Hz
Measuring Range AC/DC Voltage: 0-300V; AC/DC Current: 0-30A
Display Type Large color LCD touchscreen
Capacity Current: 6x30A; Voltage: 4x300V
Temperature 0C-40C

Phase Angle Range 0 - 360
Safety Standard IEC 61010
Start/Stop Control Via input contacts or software
Protection Overcurrent and overvoltage protection
Phase Angle Accuracy 0.2
Software Support PC software for control and report generation
Operating System Embedded
Synchronization GPS/IRIG-B (optional)
Cooling Internal fan
Output Channels 6 current, 4 voltage, 4 binary
Binary Inputs/Outputs 8 inputs, 4 outputs
Time Measurement 0.01ms resolution
Dimensions 450 x 370 x 180 mm
Language Support Multi-language (EN, CN, etc.)
Data Storage Internal memory with USB export

MPF300 Portable relay tester Trade Information

Supply Ability 10 Unit Per Week
Delivery Time 1 Week

Product Description

Experience sizzling performance and ravishing reliability with the MPF300 Portable Relay Tester-an eminent solution for precise testing of protective relays and devices. This top-tier equipment boasts 6 current, 4 voltage, and 4 binary output channels, along with 8 binary inputs and 4 outputs. Its pivotal features include 0.01ms time resolution, internal memory with USB export, and overcurrent/overvoltage protection. With touchscreen and keypad controls, multi-language support, and advanced programmable outputs, the MPF300 is the preferred choice for professionals seeking accuracy, safety, and convenience in a compact, portable design.

Versatile Applications Across Industries

The MPF300 Portable Relay Tester stands out in various application areas, from substations and power plants to automation lines. Its adaptability is pivotal for industries requiring precise relay testing, including utility companies and process plants. Suitable for usage on plant surfaces and bench-top operations, it guarantees reliable performance in protection device validation. Its multi-functional features and programmability allow it to cater to rigorous testing demands across diverse industrial segments, making it an indispensable tool in the electrical and automation sector.

Supply Capabilities, Packaging, and Domestic Market Reach

Our MPF300 Portable Relay Tester is delivered across India, efficiently shipped to wholesalers, importers, and traders. Professionally packaged in robust units, each tester is safeguarded to ensure optimal condition upon arrival. With a steady supply ability, meeting varied demands, it offers great market value for automation and electrical professionals. Widely available within the main domestic markets, the MPF300 ensures seamless access and immediate deployment, strengthening reliability and service for plant operations across the nation.

FAQ's of MPF300 Portable relay tester:

Q: How does the MPF300 Portable Relay Tester enhance relay protection testing processes?

A: The MPF300 offers pivotal functionality with multi-channel outputs, precise time measurements, and programmable interfaces, making relay and protection device testing accurate, swift, and convenient.

Q: What are the main benefits of using the MPF300 in plant and substation environments?

A: Its portable design, high output capacity, robust protection, and multi-language interface allow seamless deployment and efficient testing in various high-demand industrial and plant settings.

Q: Where can the MPF300 Portable Relay Tester be used effectively?

A: It is eminently suited for substations, generation plants, automation lines, and bench-top settings, offering reliable operation on different types of plant application surfaces.

Q: What packaging and delivery options are available for the MPF300 in India?

A: The MPF300 is professionally packaged to ensure safety during transport and shipped nationwide to wholesalers, traders, importers, and end users, ensuring timely and reliable delivery.

Q: How does the MPF300 ensure safety and reliability in testing?

A: It conforms to IEC 61010 safety standards, features overcurrent and overvoltage protection, and provides internal cooling-ensuring both user and device safety during testing operations.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Protection Relay Test System' category

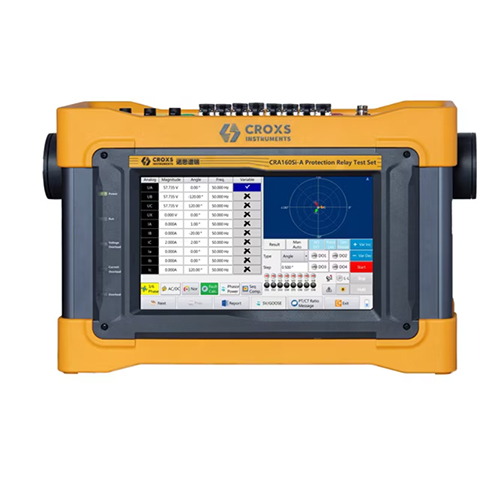

CRA160LSi-A Protection Relay Test Set (AC-Mains) Minimum Order Quantity : 1 Interface Type : USB / Ethernet Features : Portable, Touchscreen, Advanced measurement software, Userfriendly interface Usage : Field and laboratory testing Application : Testing and calibration of protection relays Humidity : 090% RH (noncondensing) Power Supply : AC Mains, 110240V, 50/60Hz Control Mode : Manual/Automatic Switching Resolution : Voltage: 0.01 V, Current: 0.001 A Accuracy : Voltage: 0.2%, Current: 0.2% Response Time : Fast response (<15 ms) Operating Voltage : AC 110240V Machine Weight : Approx. 7 kg Frequency : 50/60 Hz Measuring Range : Voltage: 0300 V, Current: 020 A Display Type : Large color touchscreen LCD Temperature : Operating: 10C to 50C Automation Grade : Automatic/Manual Mounting Type : Portable, table top Number of Specimens : Single relay per test Capacity : Capable of testing multiple relay types Test Range : Up to 3x300 V AC, Up to 3x20 A AC Test Speed : Configurable via software Specimen Size : Adaptable to various relay sizes Port Size : Standard interfaces available
