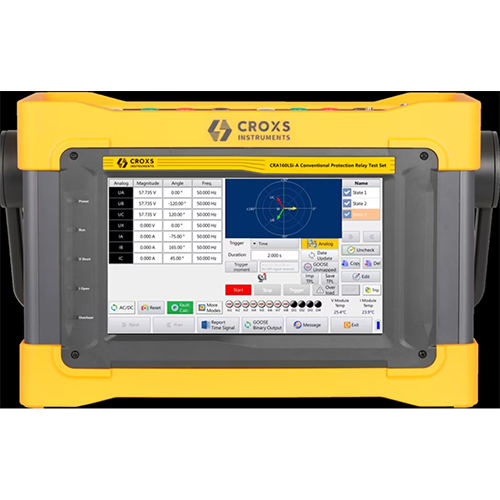

Relay Test Set for differential relay testing

Get a Price/Quote

Product Details:

Equipment Type Relay Test Set
Number of Specimens 1 Relay per Test
Humidity 85% RH (Non-condensing)
Application Differential Relay Testing, Secondary Protection Relay Testing
Accuracy 0.5%
Mounting Type Portable
Frequency 50/60Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Relay Test Set for differential relay testing Price And Quantity

Minimum Order Quantity 1 Piece

Relay Test Set for differential relay testing Product Specifications

Application Differential Relay Testing, Secondary Protection Relay Testing
Accuracy 0.5%
Humidity 85% RH (Non-condensing)
Frequency 50/60Hz
Mounting Type Portable
Equipment Type Relay Test Set
Number of Specimens 1 Relay per Test
Port Size Standard Connectors
Machine Weight Approx. 10 kg
Operating Voltage 220V 10%
Specimen Size Standard Differential Relay Sizes
Test Range Voltage: 0-300V, Current: 0-15A (per phase)
Resolution 0.01V / 0.001A
Test Speed Manual/Variable
Measuring Range Voltage: 0-300V, Current: 0-15A
Capacity 6-Phase / 8-Channel Output
Automation Grade Automatic
Power Supply AC 220V 10%, 50/60Hz
Response Time <20 ms
Usage Testing differential & protection relays
Temperature 0C to 40C (operating)
Features Lightweight, Touchscreen, Programmable, Real-Time Monitoring, Multi-Relay Support
Display Type Large Color Touch Screen Display
Control Mode Automatic / Manual
Interface Type USB, Ethernet

Waveform Generation Arbitrary waveform, IEC61850 Sampled Values compatibility
Data Storage Internal memory expandable via USB
Remote Control Supported via network connection
Housing Strong ABS shock-resistant case
Software Support PC software included for advanced analysis
Compliance IEC60255, IEC61850 (partial support)
Cooling Forced air cooling system
Output Channels 6 current channels, 6 voltage channels
Time Measurement Accuracy 0.1 ms
Electrical Protection Overcurrent, Overvoltage, and Short-Circuit Protection

Relay Test Set for differential relay testing Trade Information

Supply Ability 10 Piece Per Week
Delivery Time 1 Week

Product Description

Redeem the finest in relay test technology with our Relay Test Set, the spotlight of automation, famed for its phenomenal precision and reliability. Featuring six current and six voltage output channels, arbitrary waveform generation, and compatibility with IEC61850 sampled values, this unit ensures meticulous differential relay testing. The robust, shock-resistant ABS housing and forced air cooling system promise durability, while USB-expandable storage complements advanced PC software analysis. Markdowns are available for bulk importers, traders, and suppliers throughout India-make the Relay Test Set your first choice for unrivaled electrical protection compliance and analytic prowess.

Usage, Applications & Key Features of Relay Test Set

This advanced Relay Test Set is engineered for differential relay and secondary protection relay testing, excelling in both laboratory and field applications. Its arbitrary waveform generation, multi-phase support, and real-time monitoring make it ideal for calibration, functional verification, and troubleshooting. Upgrade your workflow with its large touchscreen, lightweight build, programmable features, and comprehensive IEC compliance. Other notable applications include overcurrent, overvoltage, and short-circuit protection analysis for standard relay sizes.

Supply Ability, Market Valuation & Payment Exchange

Our Relay Test Set stands at the forefront of the Indian market, appreciated for its reliable supply ability and lucrative market value. Flexible payment terms ensure a smooth exchange process for wholesalers, importers, and traders. Each unit is securely packaged to maintain its phenomenal condition during transit and delivery. Valuation is competitive, matching global standards and assuring solid returns on investment for every relay tester buyer.

FAQ's of Relay Test Set for differential relay testing:

Q: How does the Relay Test Set ensure accurate and reliable differential relay testing?

A: By utilizing six current and six voltage channels, advanced arbitrary waveform generation, and a response time under 20 ms, the Relay Test Set delivers precise, reliable testing. The device's 0.1 ms time measurement accuracy and IEC compliance guarantee dependable and repeatable results.

Q: What features make this Relay Test Set suitable for real-time applications?

A: Real-time monitoring, large color touchscreen display, fast response times, and network remote control enable seamless integration into modern testing setups. Programmable outputs and PC software support provide flexibility during various protection and differential relay test scenarios.

Q: When should I consider using the Relay Test Set for my protection systems?

A: Use this set when you need to perform comprehensive tests on differential or secondary protection relays-especially when accuracy, variable test speed, and automation are crucial for ensuring system protection and compliance.

Q: Where can this equipment be deployed and what are its mounting options?

A: The portable design and strong ABS housing allow deployment in laboratories, field service sites, or substations. Its lightweight and shock-resistant structure ensure mobility and longevity across diverse working environments.

Q: What is the process of redeeming after-sales support and software updates?

A: After purchase, users can register their equipment to redeem continuous software updates and technical support. The included PC software offers additional analysis tools, with regular updates provided via USB or Ethernet for sustained operating excellence.
